AO: The Intelligent Ampoule Opener

AO existing sizes ( 1, 2 and 5 ml ) are only compatible with DIN ISO 9187 European standard ampoules. For exact DIN sizing see DIN SIZING Chart.

Not sure what DIN ampoule are, see: DIN AMPOULES
For DIN ampoule sizes that are larger, please see our AOP DIN SIZES

AO original offers protection against sharps injuries at an attractive price point, as it is completely reusable for hundreds of uses. It is fully washable and sterilizable. See: Specifications section for details.

For all other types of ampoules

Please review our other new opener systems in AOP openers and AOT openers. Or Contact us for greater information.

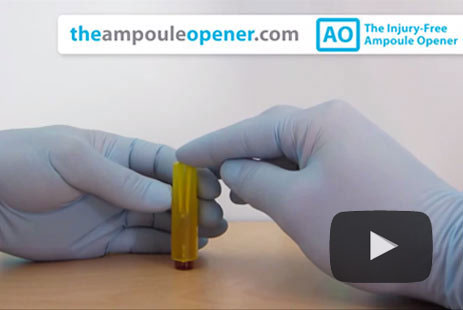

(click the video above to see the AO in action)

The AO Ampoule Opener Kit

(Click image to see actual measurements of DIN ampoule for this AO opener.)

Complete Kit – Non-Sterile (DIN ONLY)

The Complete Kit includes one of each size ampoule opener we offer – a 1ml, 2ml, and 5 ml AO ampoule opener. Each ampoule opener is designed to open standard DIN AMPOULES European, Canadian, and U.S. ampoules between 500 – 1000 times.

Volume Discounts Available

  • 1 to 6 units: $47.99 each
  • 7 to 12 units: $40.99 each
  • 12+ units: Contact Us
Complete Kit – Non-Sterile (DIN ONLY)

The Complete Kit includes one of each size ampoule opener we offer – a 1ml, 2ml, and 5 ml AO ampoule opener. Each ampoule opener is designed to open standard DIN AMPOULES European, Canadian, and U.S. ampoules between 500 – 1000 times.

Volume Discounts Available

  • 1 unit: $45.99 each
  • 2 to 4 units: $44.99 each
  • 5 to 8 units: $43.99 each
  • 9 to 12 units: $42.99 each
  • 13 to 24 units: $40.99 each
  • 25 units: Obtain quote

$45.99

Shipping to USA and Canada only.
All other countries please contact us for quotation.

Contact Us for Express Shipping
*Quantity Adjustable in Cart

Add To CartView Cart

(Click image to see actual measurements of DIN ampoule for this AO opener.)

1ml – Non-Sterile (DIN ONLY)

The 1ml AO ampoule opener is designed to safely and easily open 1ml standard DIN AMPOULES European, Canadian, and U.S. ampoules between 500 – 1000 times.

Volume Discounts Available

  • 1 to 6 units: $18.99 each
  • 7 to 12 units: $14.99 each
  • 12+ units: Contact Us
1ml – Non-Sterile (DIN ONLY)

The 1ml AO ampoule opener is designed to safely and easily open 1ml standard DIN AMPOULES European, Canadian, and U.S. ampoules between 500 – 1000 times.

Volume Discounts Available

  • 1 unit: $18.99 each
  • 2 to 4 units: $17.99 each
  • 5 to 8 units: $16.99 each
  • 9 to 12 units: $15.99 each
  • 13 to 24 units: $13.99 each
  • 25 units: Obtain quote

$18.99

Shipping to USA and Canada only.
All other countries please contact us for quotation.

Contact Us for Express Shipping
*Quantity Adjustable in Cart

Add To CartView Cart

(Click image to see actual measurements of DIN ampoule for this AO opener.)

2ml – Non-Sterile (DIN ONLY)

The 2ml AO ampoule opener is designed to safely and easily open 2ml standard DIN AMPOULES European, Canadian, and U.S. ampoules between 500 – 1000 times.

Volume Discounts Available

  • 1 to 6 units: $19.99 each
  • 7 to 12 units: $15.99 each
  • 12+ units: Contact Us
2ml – Non-Sterile (DIN ONLY)

The 2ml AO ampoule opener is designed to safely and easily open 2ml standard DIN AMPOULES European, Canadian, and U.S. ampoules between 500 – 1000 times.

Volume Discounts Available

  • 1 unit: $19.99 each
  • 2 to 4 units: $18.99 each
  • 5 to 8 units: $17.99 each
  • 9 to 12 units: $16.99 each
  • 13 to 24 units: $14.99 each
  • 25 units: Obtain quote

$19.99

Shipping to USA and Canada only.
All other countries please contact us for quotation.

Contact Us for Express Shipping
*Quantity Adjustable in Cart

Add To CartView Cart

(Click image to see actual measurements of DIN ampoule for this AO opener.)

5ml – Non-Sterile (DIN ONLY)

The 5ml AO ampoule opener is designed to safely and easily open 5ml standard DIN AMPOULES European, Canadian, and U.S. ampoules between 500 – 1000 times.

Volume Discounts Available

  • 1 to 6 units: $20.99 each
  • 7 to 12 units: $16.99 each
  • 12+ units: Contact Us
5ml – Non-Sterile (DIN ONLY)

The 5ml AO ampoule opener is designed to safely and easily open 5ml standard DIN AMPOULES European, Canadian, and U.S. ampoules between 500 – 1000 times.

Volume Discounts Available

  • 1 unit: $20.99 each
  • 2 to 4 units: $19.99 each
  • 5 to 8 units: $18.99 each
  • 9 to 12 units: $17.99 each
  • 13 to 24 units: $15.99 each
  • 25 units: Obtain quote

$20.99

Shipping to USA and Canada only.
All other countries please contact us for quotation.

Contact Us for Express Shipping
*Quantity Adjustable in Cart

Add To CartView Cart

Note: Price changes.
Plus: All other countries need to have quotes given on all orders.

Detailed Specifications

Compatibility: The original injection molded AO Ampoule Opener, is available for use ONLY with DIN AMPOULES and DIN SIZING European standard ampoules. We’ve recently made advances in our production techniques and are able to manufacture the AO to suit any size or type of ampoule available on the market. Contact our sales team using the form at the bottom of this page for more information.

Standard Sizes Available: 1, 2 & 5 ml DIN

Packaging: Sold individually or as a kit (one ea. 1, 2 & 5 ml)

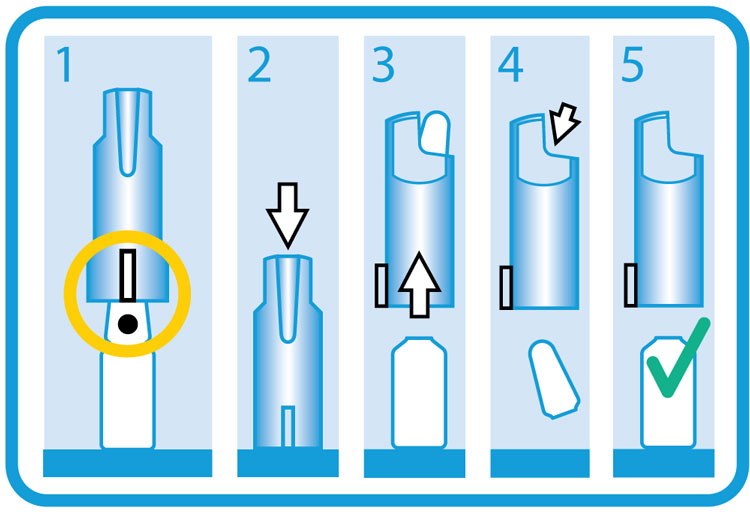

Performance: AO is a single-part handheld opener designed to open an ampoule on a bench top. The device simply slides down over the ampoule until it is enveloped and resistance is met. Slight additional pressure is applied to AO until a snap is heard. When lifting the AO straight up after the break, the ampoule is revealed exposing the clean break. The neck of the ampoule is temporarily secured in the upper section of the opener for easy disposal.

Sterilization and Reuse: Our injection molded AO is a fully reusable device that can safely open hundreds of glass ampoules before replacement. AO can be purchased in sterilized form or in the non-sterile version – the standard product.  AO can be safely autoclaved at 120 degrees C for 20 minutes, for 20 cycles, before being replaced.

Customization: AO can be custom manufactured for any size and type of glass ampoule made. Please contact a sales representative using the form at the bottom of this page for details. We can make you a custom test version of AO called AOT within 72 hours of receiving your specifications and or samples of your ampoules. Prices range from $15-30 per unit in quantities from 1 to 10. This allows you to test the opener before ordering much lager volumes if needed. Much Larger discounts available as order volume increases.

Opening Ampoules with AO

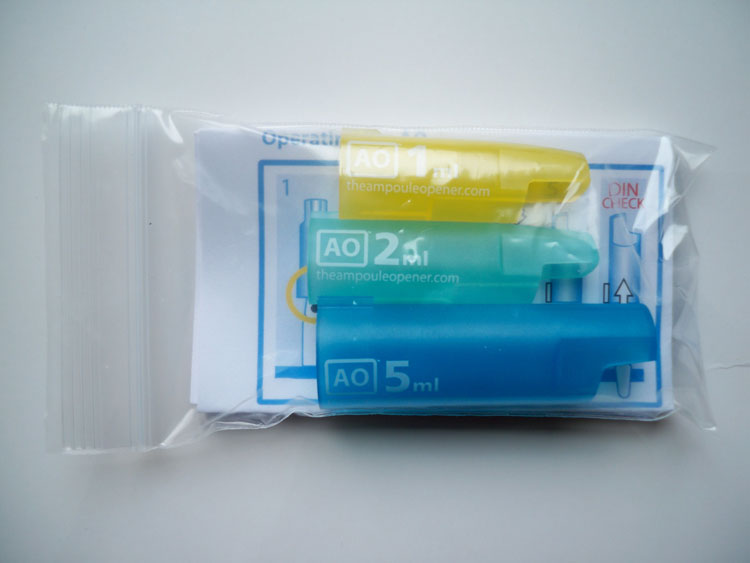

AO Kit in Packaging

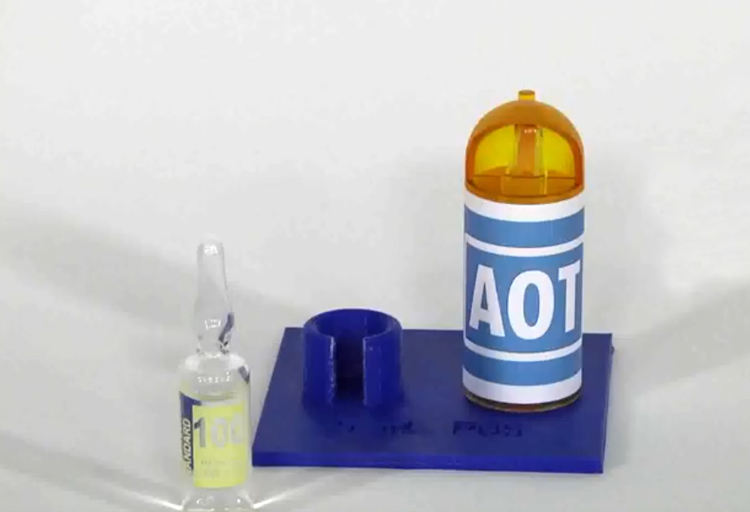

AOT short video

Canada-Flag

AO is Approved in Canada

Click here to download PDF of Canadian Regulatory Classification.

EU-Flag CE-Seal

AO is Approved in the EU

The AO ampoule opener is fully approved for use in the European Union.

USA

AO is Approved in USA

The AO ampoule opener is fully approved for use in USA.

USA

AO is Approved in AUSTRALIA

The AO ampoule opener is fully approved for use in AUSTRALIA.

Product & Packaging Customizations

Promotional Use/Custom Branding: As AO is designed to open unsupported ampoules it is a smaller opener. It is easy to use as a promotional piece and can be included in ampoule packaging or supplied separately in a custom branded box with instruction or other literature inside. AO can be custom printed with a company’s logo and other requirements can be met. Promotional use of AO is available on high volume purchase. Contact a sales representative using the contact form below for details.

Product Packaging Options

  1. Individual card type packaging: Instruction literature is supplied with each individual unit.
  2. Kit: The AO can be combined in any configuration required by a client (i.e. 1, 2, and 5ml can be packaged together – as is the default kit configuration or the AO sizes can be combined in any other way to meet your requirements).
  3. Bulk: All products are available in custom bulk configurations.
  4. Custom packaging is available subject to our design and construction abilities.

Contact a sales representative using the contact form below for more details on product packaging options.

Product Literature: Safety sheets are supplied with all products when individually packaged. Bulk literature is available when required by the customer. English is the primary language, however can be made available in other languages per customer requirements. Literature sheets can be customized for clients needs. Contact a sales representative using the contact form below for details.

Brochures & Documents

International & Distributor Orders

We welcome international customers and those interested in placing large discounted wholesale or institutional orders to contact us using the form below for a quote.
